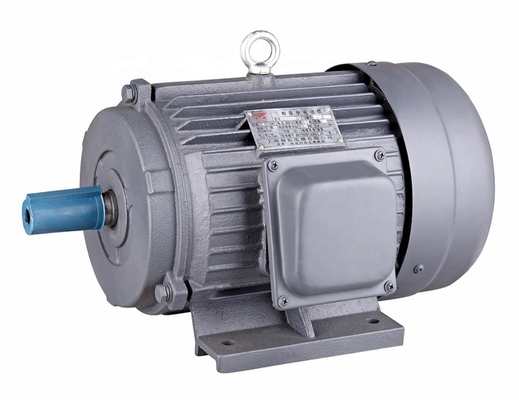

Name: Y Series 132s-5.5kw 2900RPM Totally Enclosed Three Phase Induction Electric Motor
Brand: Y Series 132s-5.5kw 2900RPM Totally Enclosed Three Phase Induction Electric Motor
SKU: Y-132S1-2
Price: 160.77 USD
Availability: InStock
Rating: 4.5 (128 reviews)

Y Series 132s-5.5kw 2900RPM Totally Enclosed Three Phase Induction Electric Motor

10 Sets

MOQ

$160.77(10 - 49 Sets) $158.40(50 - 99 Sets) $157.06(100 - 199 Sets) $154.59(>=200 Sets)

Preis

Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat

Eigenschaften

Technische Daten

Warranty: 3months-1year

Model Number: Y-132S1-2

Type: Induction Motor

Frequency: 50HZ

Phase: Three-phase

Protect Feature: Totally Enclosed

AC Voltage: 380/400V

Efficiency: IE 2

Voltage: 380/400V

Current: 11.1 A

Speed: 2900 RPM

Insulation class: B

Service Factor: 1.15

Protection class: IP44

Protect feature: TEFC

Mounting: B3 B5 B35

Housing: Cast Iron Housing

Wire: 100% Copper Wire Electric Motor

Zertifizierung: ce

Grundinformation

Zertifizierung: ce

Model Number: Y-132S1-2

Zahlung und Versand AGB

Packaging Details: One set per wooden case

Supply Ability: 10000 Set/Sets per Month

Produkt-Beschreibung

Product Description

Y series 132s-5.5kw 2900RPM three phase induction electric motor

Model No.:	Y-132S1-2
Phase:	Three Phase
Type:	Induction Motor
Power:	5.5kw
Current:	11.1 A
Voltage:	220/380/400v
Frequency:	50 Hz
Speed:	2900 r/min
Protection Class:	IP44
Protect Feature:	TEFC
Cooling Method:	IC411
Insulation Class:	B
Service Factor:	1.15
Duty:	Continuous (S1)
Certification:	CE ; ISO 9001

How to get products quotation quickly ?

If you could provide the detailed information as follows:

Power or Horsepower
Phase: Single ; Three
Voltage: 115V/230V/380V/400V/460V/796V OR Others
RPM
Frequency: 50Hz ; 60Hz
Housing: Cast-iron Body; Aluminium Shell

Click here to view more products for your references

Packaging & Shipping

Packaging: One set per wooden case

Shipping: 20 days after payment
